Maximum Protection for Open-Joint Cladding Systems
DELTA-FASSADE 20 PLUS is the ultimate professional solution for rear-ventilated facades with open joints. Formulated with a highly tear-resistant polyester cloth and a specialized UV-resistant coating, this membrane guarantees long-term durability behind open joints up to 20 mm wide (covering up to 20% of the total surface area).
Key Features & Technical Advantages:
- Permanent UV Stability: Engineered to withstand prolonged, direct exposure to sunlight through open joints without degrading.
- Integrated Self-Adhesive Edges: Features the "PLUS" dual adhesive strip system for an instant, wind-tight, and secure seal at all overlaps, eliminating thermal bridging.
- High Vapor Permeability: With an exceptional Sd-value of approx. 0.02 m, it allows interior moisture to escape freely, preventing mold growth and rot within the structure.
- Extreme Weatherproof Barrier: Acts as a tough shield against driving rain, wind, and drifting snow while keeping external insulation perfectly dry.
Ideal Applications:

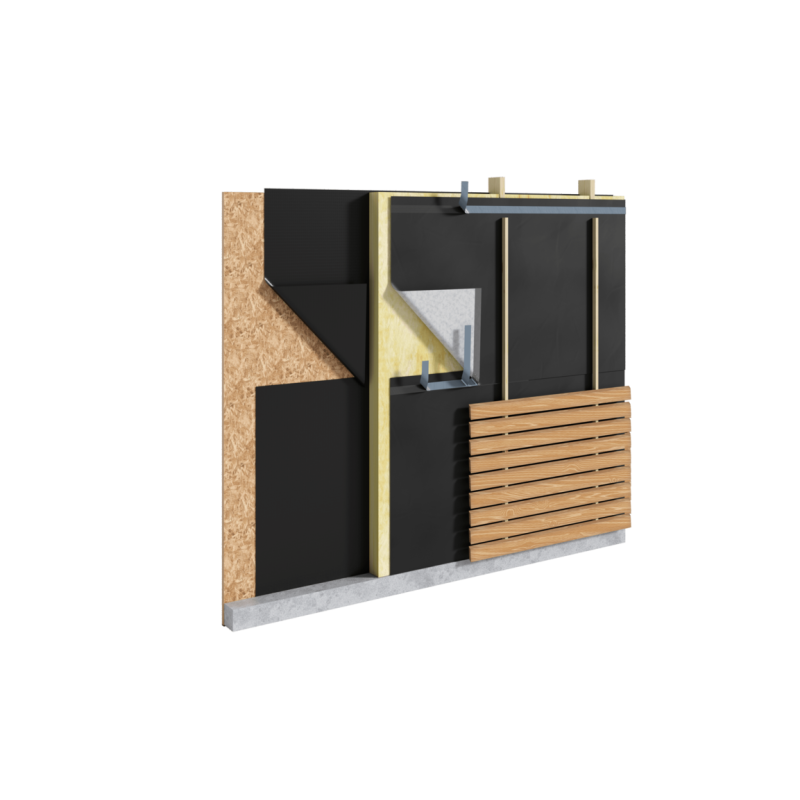

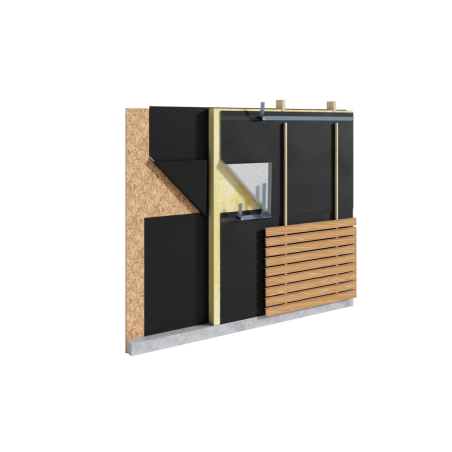

Perfect for modern commercial and residential architectures utilizing open-joint timber cladding, composite panels, metal facades, and open-joint stone rain-screens.
--------
| Technical data DELTA®-FASSADE 20 (PLUS) |
| Material |
Specially coated, highly tear-resistant polyester fleece with a waterproof plastic coating and with adhesive zones placed on both edges. DELTA®-FASSADE 20 without adhesive zones. |
| Suitability |
DELTA®-FASSADE 20 PLUS for open façades with up to 20 mm wide joints and a maximum of joint proportion of 20% of the surface. |
| Reaction to fire |
B-s1,d0, according to EN 13501-1 |
| Tensile strength |
approx. 270/230 N/5 cm, EN 12311-2 |
| Watertightness |
Watertight W 1, EN 13859-1+2 |
| Sd-value |
approx. 0,02 m |
| Servicetemperature range |
from -40 °C to +80 °C |
| Moisture resistance factor |
approx. 0,028 m²hPa/mg |
| Weight |
approx. 210 g/m² |
| Roll weight |
approx. 16 kg |
| Roll size |
50 m x 1.50 m |
