Online only
DELTA-FASSADE COLOR PLUS
€448.00 excl. VAT
€551.04 incl. VAT
€9.96 / m² excl. VAT
€12.25 / m² incl. VAT
Open-joint facade membrane

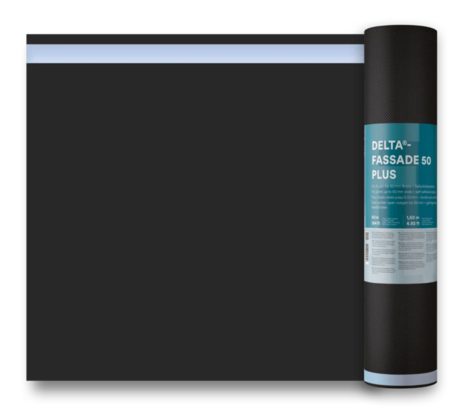

DELTA-FASSADE 50 Plus
Roll 50 m × 1.50 m (75 m²)
A UV-resistant, vapour-open facade membrane for open facades with joints up to 50 mm and up to 50% open surface.
Joints up to 50 mmUp to 50% open surfaceFire class B-s1, d0Permanently UV-resistant
€448.00 excl. VAT
€551.04 incl. VAT, per roll of 75 m²
€5.97 / m² excl. VAT (€7.35 / m² incl. VAT)
Delivery from €10.00 excl. VAT for one parcel up to 30 kg, €75.00 per standard pallet. Confirmed on your proforma invoice.
Description
DELTA-FASSADE 50 PLUS is a diffusion-open facade membrane for open facades with joints up to 50 mm wide that make up no more than 50% of the surface. It is also suitable for metal and timber stud constructions and protects the facade against wind and moisture.
A special coating makes the membrane permanently UV-resistant, so it can sit behind open joints in daylight. It meets Euro fire class B-s1, d0, and its sd value of about 0.02 m lets vapour escape from the inside, keeping the insulation dry.
The PLUS version has two integrated adhesive strips for a wind-tight overlap.
Where it is used

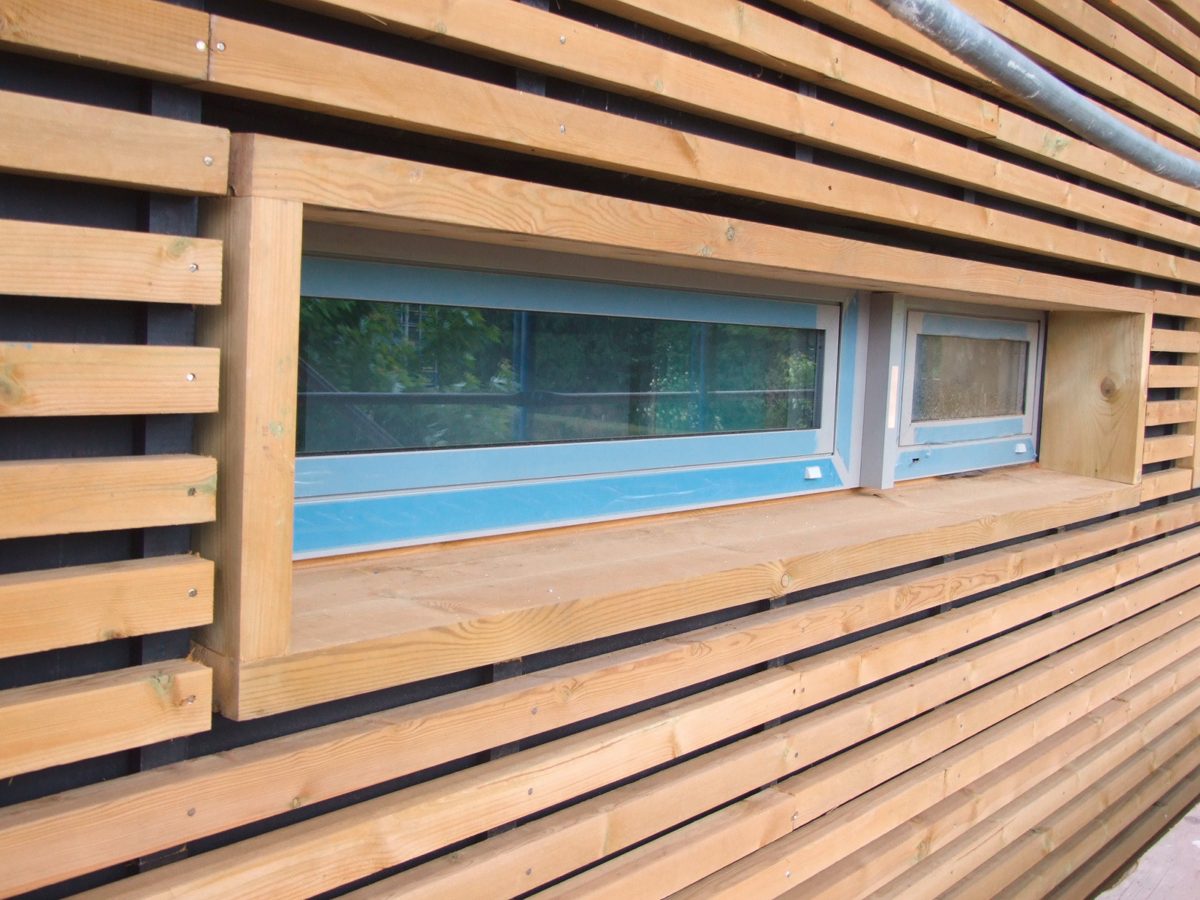

- Behind open timber, metal and glass facades with joints up to 50 mm.
- On metal and timber stud constructions.
- Where joints make up no more than 50% of the facade surface.
Technical data
MaterialBlack polyester fleece with a UV-resistant polyacrylate coating
Suitable forOpen facades, joints up to 50 mm, max 50% of the surface
Fire classB-s1, d0 (EN 13501-1)
Sd valueapprox. 0.02 m (EN ISO 12572)
Weightapprox. 270 g/m²
Thicknessapprox. 0.50 mm
Tear strength370 / 270 N per 5 cm (290 / 230 N after 5,000 h UV)
Water tightnessClass W1 before and after ageing
Driving rainPassed, TU Berlin test
Roll size50 m × 1.50 m (75 m²)
