Open-joint facade membrane
DELTA-FASSADE COLOR PLUS
Roll 30 m × 1.50 m (45 m²)
Turn weatherproofing into part of the design. A coloured membrane for open and transparent facades, in seven standard colours.
7 coloursJoints up to 50 mmUp to 50% open surfaceFire class B-s1, d0

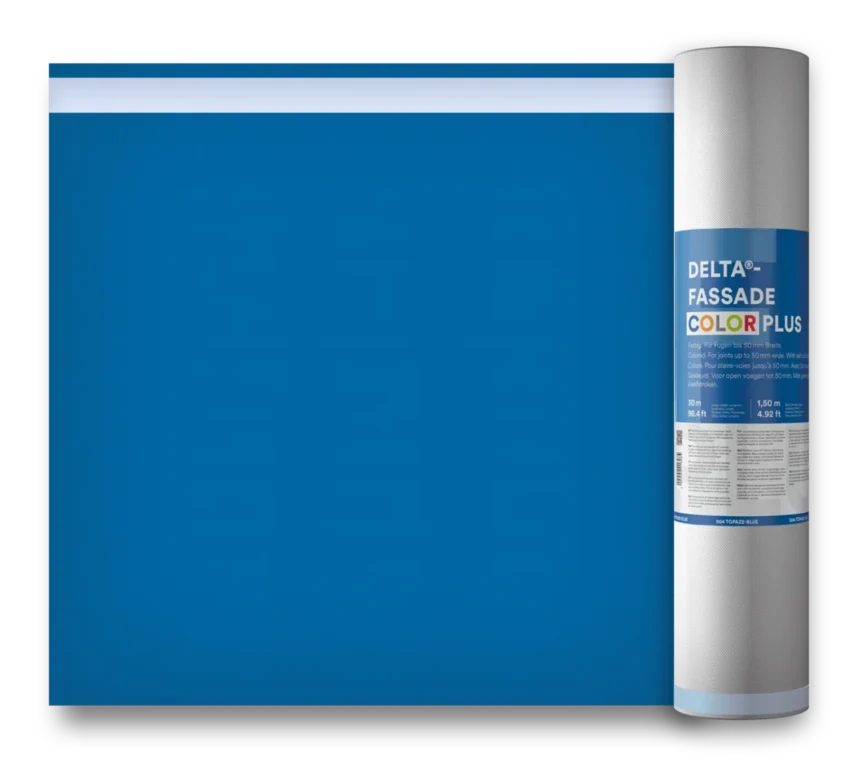

Colour: Topaz blue (7 standard colours)
€448.00 excl. VAT
€551.04 incl. VAT, per roll of 45 m²
€9.96 / m² excl. VAT (€12.25 / m² incl. VAT)
Delivery from €10.00 excl. VAT for one parcel up to 30 kg, €75.00 per standard pallet. Confirmed on your proforma invoice.
Description

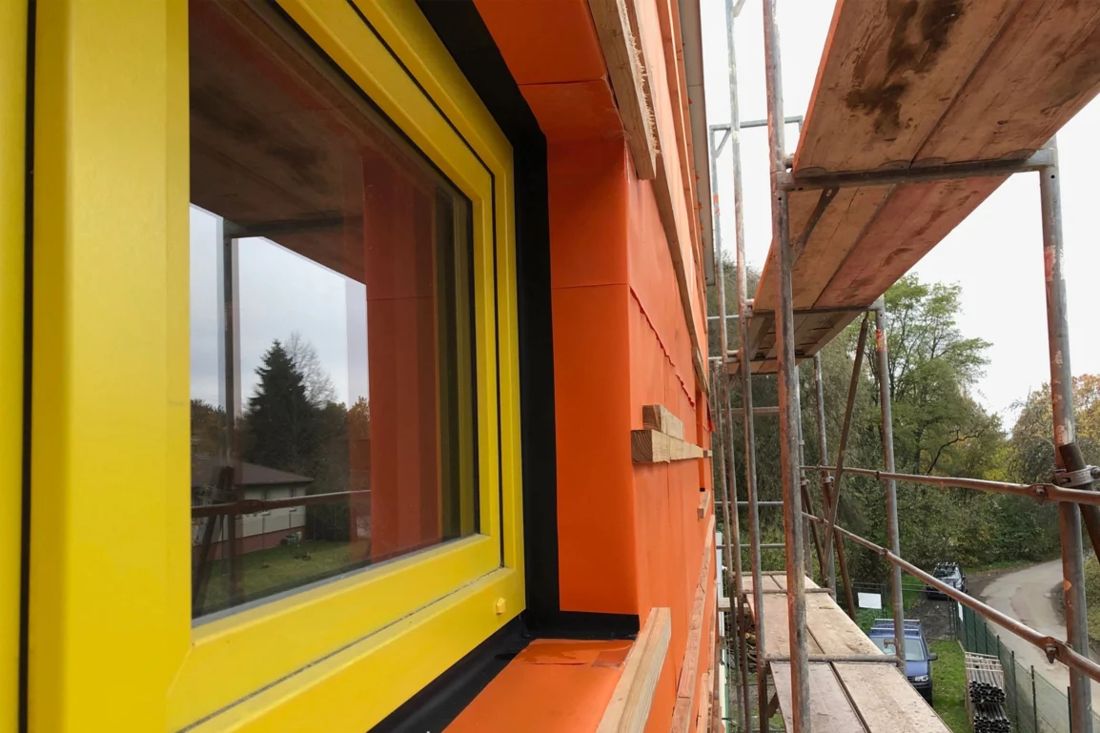

DELTA-FASSADE COLOR PLUS brings colour and high-spec engineering together behind open facades. Where timber slats, metal mesh, expanded steel, perforated panels or glass leave the membrane on show, its colour shows through the joints and adds depth and dramatic shadow.
It comes in seven standard colours (Amber-orange, Coral red, Emerald green, Topaz blue, Pearl gray, Agate white and Onyx black), and special colours are available on request. It takes open joints up to 50 mm wide and up to 50% open surface, and keeps its UV resistance.
The membrane is vapour permeable from the inside out (Sd value approx. 0.02 m) and meets Euro fire class B-s1, d0.
Where it is used

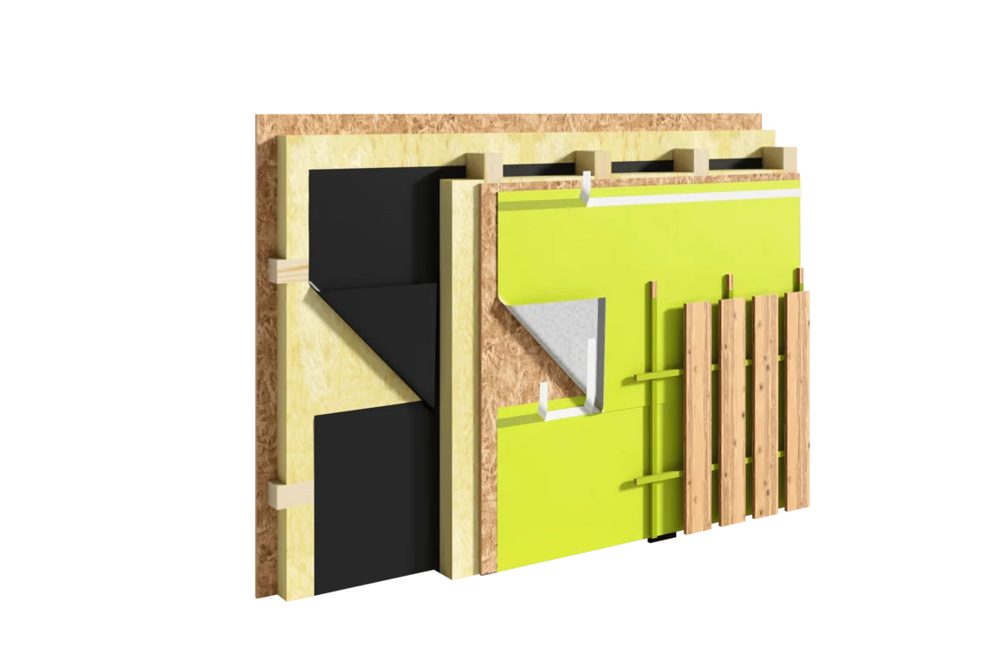

- Behind wooden facades and wood composite boards.
- Behind expanded metal and perforated sheet metal panels.
- Behind transparent and glass facades.
- Wherever joints reach up to 50 mm and make up no more than 50% of the surface.
Technical data
Colours7 standard, special colours on request
MaterialHighly tear-resistant polyester fabric with a watertight synthetic coating and adhesive zones on both edges
Suitable forOpen facades, joints up to 50 mm, max 50% of the surface
Glass claddingMax. 10% UV transmission through the glass
Fire classB-s1, d0 (EN 13501-1); VKF RF2 (5.2)
Tear strength370 / 270 N per 5 cm
Water tightnessClass W1
Sd valueapprox. 0.02 m
Weightapprox. 300 g/m²
Thicknessapprox. 0.60 mm
Roll size30 m × 1.50 m (45 m²)
